Diesel Engine Foriest Fire Truck 12000Kg Electric Fire Extinguishing Vehicle

Name: Diesel Engine Foriest Fire Truck 12000Kg Electric Fire Extinguishing Vehicle
Brand: SHACMAN
Price: 46 USD

Wholesale Diesel Engine Foriest Fire Truck 12000Kg Electric Fire Extinguishing Vehicle from china suppliers

Place of Origin : Shaanxi, China

Brand Name : SHACMAN

MOQ : 1

Price : $46,500-57,000

Drive Wheel : 6X4

Type : Rescue

Transmission Type : Automatic

Condition : New

Horsepower : 251 - 350hp

Tank Capacity : 8000-12000L

Emission Standard : Euro 2

Fuel Type : Diesel

Max. Work Height : 35m

Size : 10320x2550x3850mm

Driving style : Left hand drive or right hand drive

Suspension : Front and rear multi-leaf springs (four-bolt saddle)

Wheelbase : 4375+1400mm

Tank capacity : Water tank: 80000L/10000L/12000L, Foam tank: 2000L/3000L

Fire pump rate flow : 60L/s, 1.0MPa

Vacuum pump water diversion time : ≤35s

Fire cannon rate flow : 48L/S, 1.0MPa

Fire cannon work radiu : Water≥ 70m, foam ≥65m

Fire pump cooling-down method : Forced water cooling

Warranty : 1 Year

Contact Now

Diesel Engine Foriest Fire Truck 12000Kg Electric Fire Extinguishing Vehicle

Products Description

SHACMAN F3000 Series Foam Fire Trucks

SHACMAN fire truck is equipped with foam tank, proportional mixing system and water pump, which can accurately mix water with foam extinguishing agent to generate a large amount of foam, effectively cover the fire source, isolate oxygen and extinguish the flame.Fire engines are widely used in petrochemical plants, airports, oil depots and gas stations, large traffic tunnels and dangerous goods warehouses.

Features and advantages of fire trucks:

1. Large capacity liquid tank 2. Powerful fire pump and gun 3. Advanced foam system 4. Durable low maintenance structure 5. Reliable Shaanxi automobile chassis 6. Humanized operation design 7. Safety and operational assistance 8. High customization flexibility

Truck Brand	SHACMAN F3000 Foam Fire Truck
Chassis	Driving Style	Left hand drive or right hand drive
		Driving Type	6x4
		Axle Ratio	16T HD Dual Casting Axle - 4.266
		Frame	850×300(8+7)mm
		Wheelbase	4375+1400mm
		Vehicle Speed Ratio	16T HD Dual Casting Axle - 4.266
		Emission Standard	EURO Ⅱ
		Suspension	Front and rear multi-leaf springs (four-bolt saddle)
Fire Extinguishing Agent Tank	Tank capacity	Water tank: 10m³, Foam tank: 2m³
Fire Extinguishing Agent Tank		Tank material	300L aluminum alloy
Fire Pump	Rate of flow	60L/s
Fire Pump		Pressure	1.0MPa
Vacuum Pump	Working form	Piston
		Water diversion time	≤35s
		Water absorption depth	≥7m
		Maximum working pressure	≥85Kpa
Pipeline System	Water suction line	DN150 inlet
Pipeline System		Outlet pipeline	One DN100 outlet fire cannon pipe is set on the roof. One DN80 and one DN65 outlet are set on both sides of the pump room.
Fire Cannon	Brand	WESTE, PL8/48W fire cannon
		Rate of flow	1.0MPa
		Work radiu	Water ≥ 70m, foam ≥ 65m

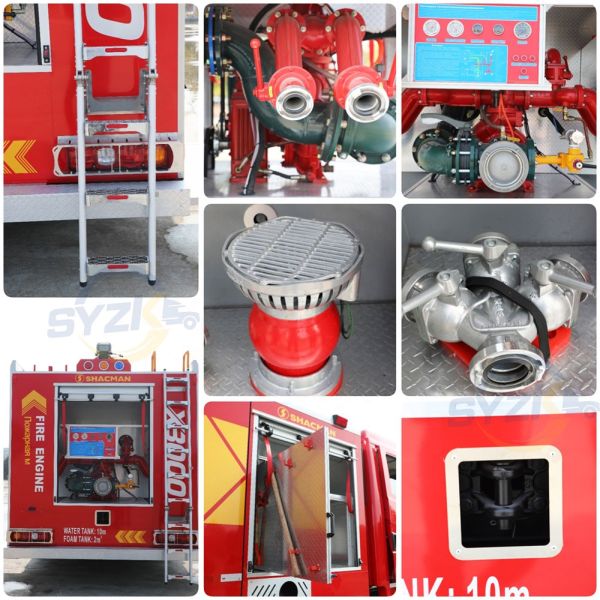

Details Images

Company Profile

Henan Senyao Heavy Truck International Trade Co., Ltd. is mainly engaged in the export integration of Shaanxi Automobile Heavy Truck, special vehicles and construction machinery, and is a global export authorization enterprise of Shaanxi Automobile Heavy Truck. We always adhere to the strategic policy of "mutual benefit, honesty and win-win", and build a huge sales network in Central Asia, Africa, Central and South America with excellent brand advantages and our own perfect procurement and supply system. With an annual export capacity of more than 3,000 sets, Senyao's product quality and service have been well received by customers at home and abroad. Military quality, professional export, looking forward to long-term cooperation with you!

Purchase Guide

Step 1: Define Your Requirements

1. What is the primary mission and purpose? (1) Urban fire station: Responsible for general firefighting in the jurisdiction, requires a main water tender or pumper. (2) Industrial area/chemical plant: May require a foam fire truck, powder fire truck, or chemical accident rescue vehicle for oil and chemical fires. (3) Community/township: May require small or medium-sized fire trucks for navigating narrow roads. (4) Airport: Must procure specialized Aircraft Rescue and Fire Fighting (ARFF) vehicles. (5) Wildland firefighting: Requires forest fire trucks with strong off-road capability and large water tanks. Is the main task firefighting or rescue? Is an integrated rescue fire truck with functions like breaking, lighting, and smoke extraction needed?

2. What is the operational environment? (1) Are the jurisdictional roads wide avenues or narrow alleys? (2) What is the water supply situation? (3) Are there special risk units (gas stations, chemical plants, tunnels, high-rise buildings)? This determines the need for special extinguishing agents (foam, powder) and elevated water monitor capabilities.

3. What is the budget? Fire trucks are major equipment, with prices ranging from hundreds of thousands to tens of millions of RMB. A clear budget range is essential.

4. Who are the operators? Are the crew members experienced? This will influence the requirements for the vehicle's level of automation and operational complexity.

Step 2: Confirm the Fire Truck Details

A. About the Chassis 1. What's the chassis brand, model, and drive configuration? (e.g., SHACMAN, 4x2, 4x4, 6x4, 8x4.) The drive configuration determines the vehicle's passability and off-road capability. 4x2 or 6x4 is sufficient for ordinary urban firefighting; mountainous or rural areas may require 4x4.

2. What is the engine power? What is the emission standard? Higher power means stronger performance, which is crucial for fire trucks with high-power pumps.

3. Is the chassis certified for fire service use?

In China, fire truck chassis must comply with national compulsory certification and industry standards (such as the GB7956 series standards). This is a prerequisite for licensing and acceptance.

B. About the Superstructure (Firefighting Equipment)

1. Water Pump (1) Water pump model and brand? (e.g., Rosenbauer, Ziegler, or well-known domestic brands) (2) What is the rated flow and pressure? (e.g., 60L/s @1.0MPa) Flow determines water output volume, pressure determines range and height. (3) Does it meet the priming time requirement? (Usually≤35s at a 7m suction lift).

2. Water Tank/Foam Tank (1)What is the water tank capacity in liters? Foam tank capacity in liters? (2)What is the material? (Usually stainless steel or high-quality carbon steel with internal anti-corrosion treatment).

3. Fire Monitor (Water Cannon) (1) Fire monitor model and brand? (2) What is its flow and range? (Remote-controlled monitors are now mainstream and preferred for safety). (3) Does it have foam proportioning capability? (Type: around-the-pump, pressure proportional, line inductor?)

4. Equipment Storage/Compartments (1) Layout, space, and material of the equipment compartments? (Stainless steel is preferred). (2) Is the space sufficient based on our equipment list? Can the shelving be customized?

5. Other Key Functions (1) Is an elevated platform/aerial water monitor function needed? If yes, what is the maximum working height and reach? (12) Is there a need for a built-in generator, lighting system, extrication tool set? What are the power ratings and configurations?

Packing&Shipping

1.Professional export packaging: Weather-proof and secure. 2.Multiple shipping methods: RORO, container, or bulk vessel. 3. Worldwide deliver: Experience in shipping to 50+ countries. 4. Documentation support: Complete export documentation provided.

FAQ

Q1: What is the typical delivery time for a standard configuration foam water tender? A: The delivery time depends on the order quantity and customization level. For a standard configuration, it's typically around 20-45 days after order confirmation and receipt of down payment. Complex customizations may require more time. Q2: Do you provide training for operators and maintenance personnel? A: Yes, we do. We can provide detailed operation and maintenance manuals (in English or required language). Upon request, we can arrange training sessions at the manufacturing site or provide video training materials. For overseas projects, on-site training and commissioning can be discussed. Q3: What are the warranty terms for the fire truck? A: The warranty period is typically 12 months from the date of shipment or arrival at the destination port, depending on our terms. The warranty covers defects in materials and workmanship under normal use. Specific terms will be detailed in the sales contract. Q4: Can the fire truck be customized for specific needs, like a different tank size or special equipment? A: Absolutely. Customization is one of our strengths. We can adjust the water/foam tank capacity and ratio, add specific equipment compartments, install different types of pumps or monitors, and accommodate other specific requirements based on customer needs. Q5: What about the supply of spare parts? A: We have a reliable supply chain for SHACMAN chassis parts. For the firefighting system components, we work with OEM to ensure genuine spare part availability. We also offer support in identifying local parts suppliers where possible. Q6: Which payment terms can you accept? A: Normally we can work on T/T term or L/C term, VISA, Paypal. (1) On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client. (2) On L/C term, a 100% irrevocable /C without "soit clauses" from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
